High Multilayer Boards
High Multilayer Boards

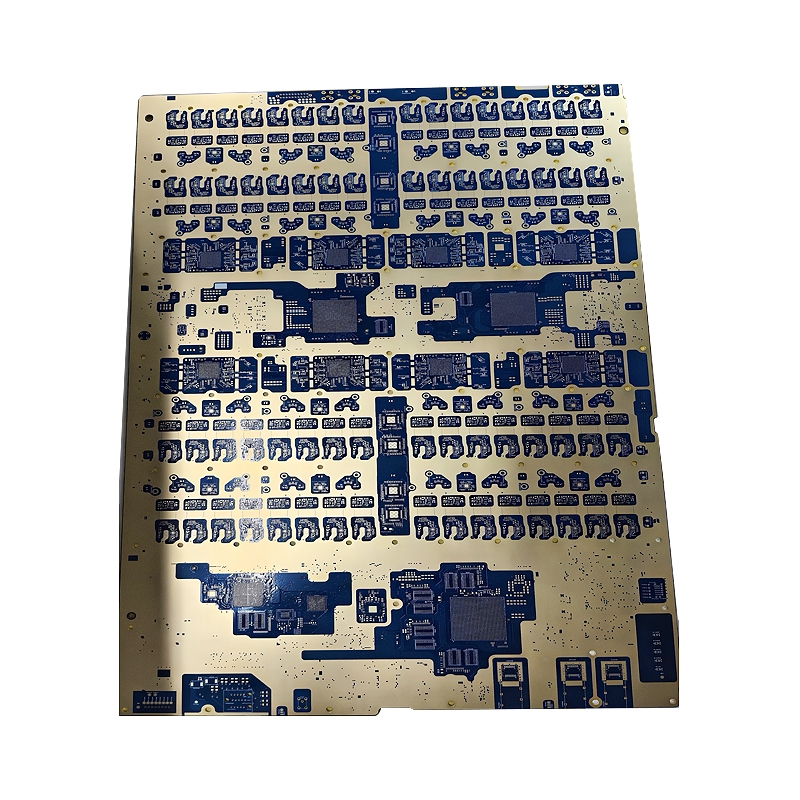

Product Model：34L
Product Description：
▪ Layers: 34L
▪ Material: FR408HR
▪ Board Thickness: 4.0mm
▪ Inner & Outer Copper Weight: 10oz
▪ Surface Finish: ENIG
