High Multilayer Boards
High Multilayer Boards

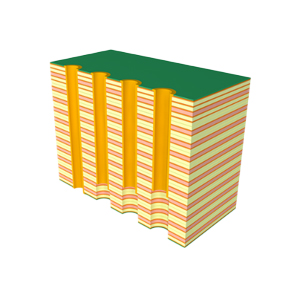

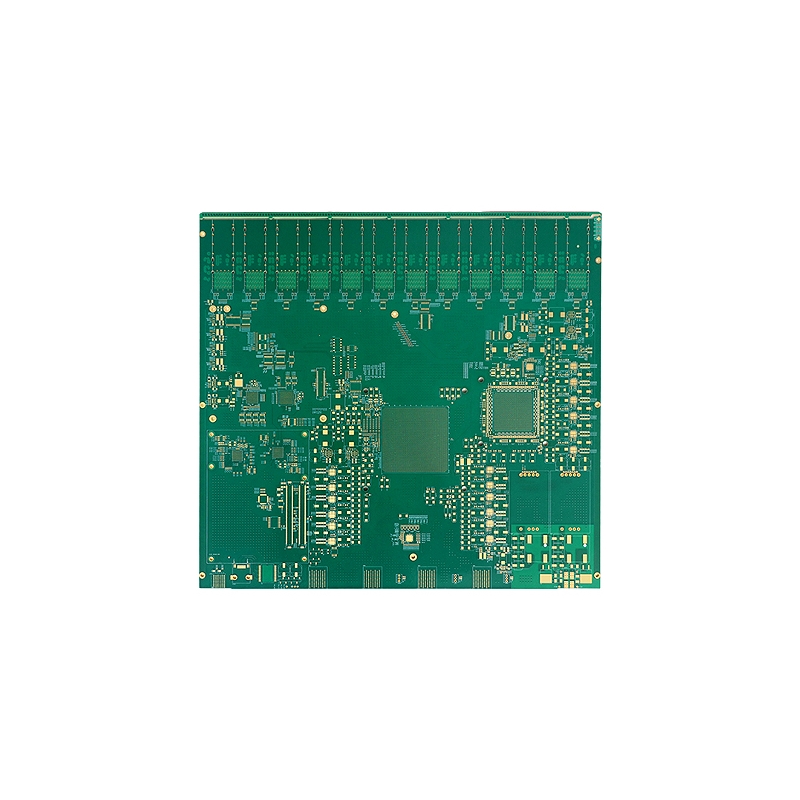

Product Model：26L
Product Description：
▪ Layers: 26L
▪ Material: Tachyon 100G
▪ Board Thickness: 3.5±0.35 mm
▪ Inner Copper Weight: 0.33 oz
▪ Min Line Width/Spacing: 0.112/0.05 mm
▪ Min Hole Size: 0.225 mm
▪ Surface Finish: ENIG
▪ Application: Switches
