High-Order HDI Boards
High-Order HDI Boards

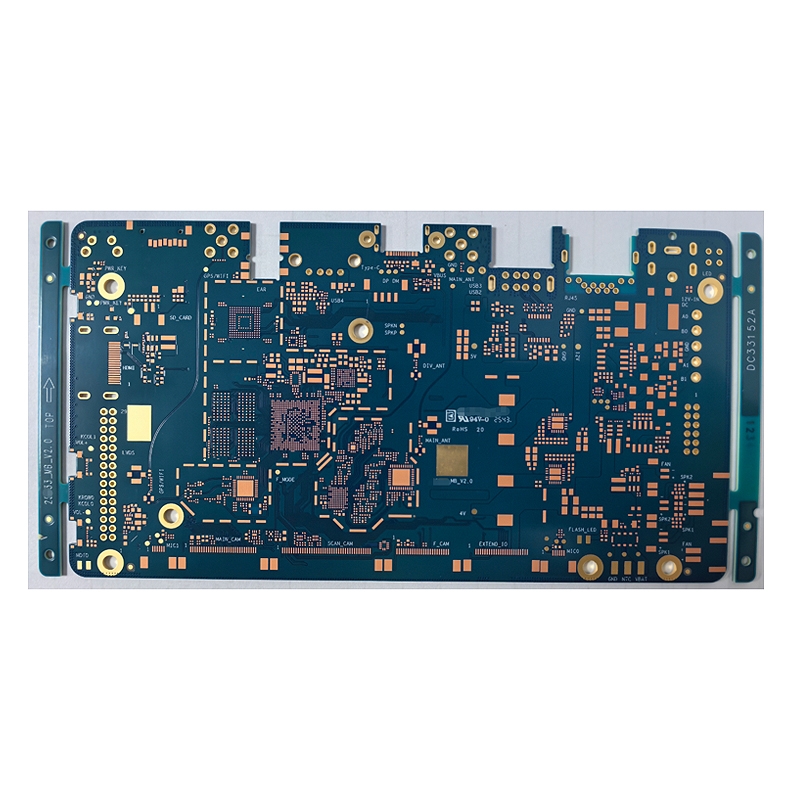

Product Model：12L
Product Description：

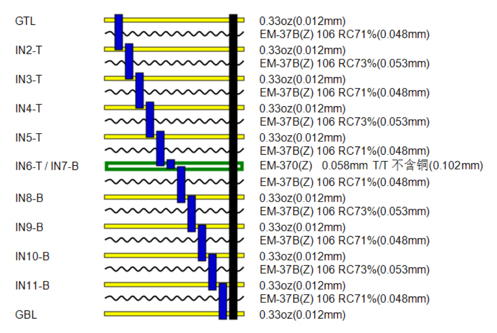

▪ Layers:12L
▪ Board thickness:0.8mm
▪ Material:EM-370
▪ Min Width/Spacing:60/60um
▪ Surface treament:ENIG+OSP
