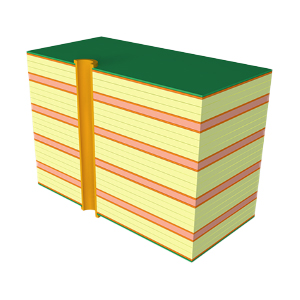

Heavy Copper Boards
Heavy Copper Boards

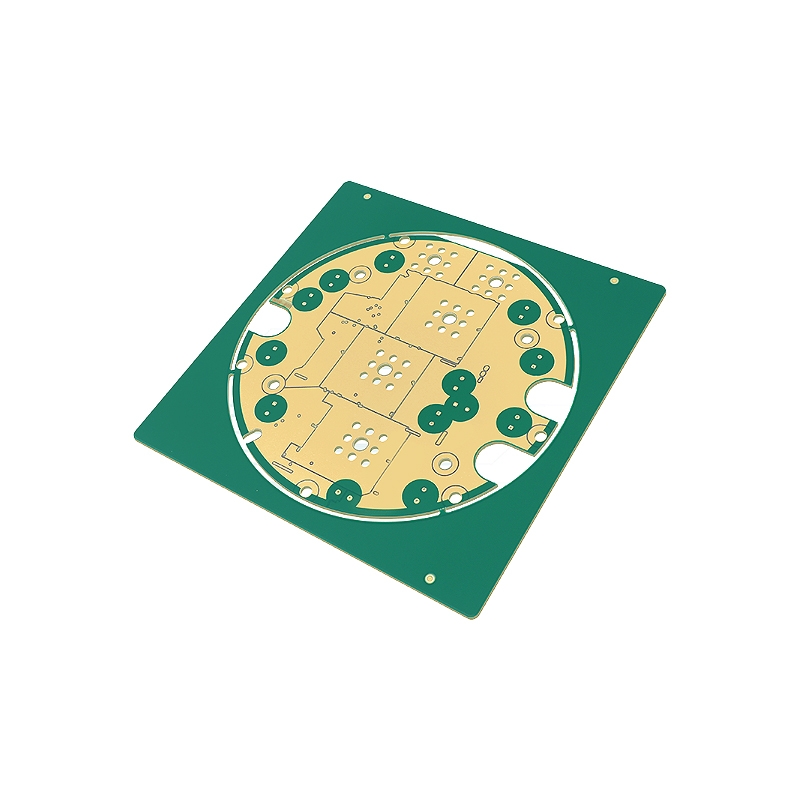

Product Model：10L
Product Description：
▪ Application: Industrial Control System
▪ Layers: 10L
▪ Material: EM-370(Z)
▪ Board Thickness: 2.48mm
▪ Inner & Outer Copper Weight: 4oz (RTF)
▪ Min Line Width / Spacing: 0.433/0.137mm
▪ Min Hole Size: 0.3mm
▪ Surface Finish: ENIG
