High-Order HDI Boards

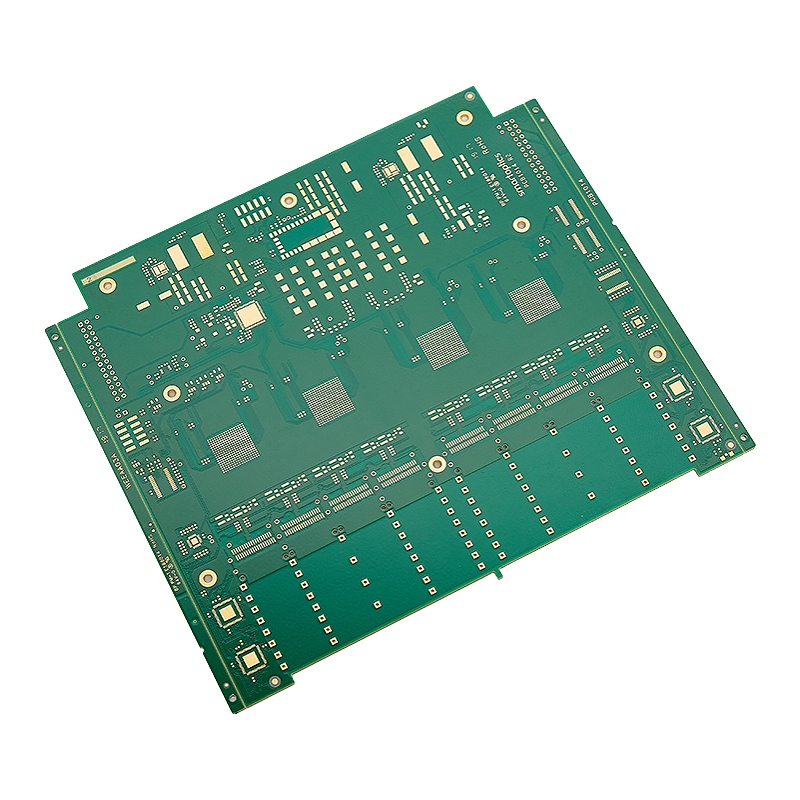

High-Order HDI Boards
Product Model：16L
Product Description：
▪ Layers -- 16Layer
▪ Material -- PanasonicR-5775
▪ Thickness --2mm
▪ Inner copper -- HOZ
▪ Min line width/spacing -- 2/2mil
▪ Min Aperture --0.1mm
▪ Surface Treament- ENIG
▪ Application --Communication Equipmet
