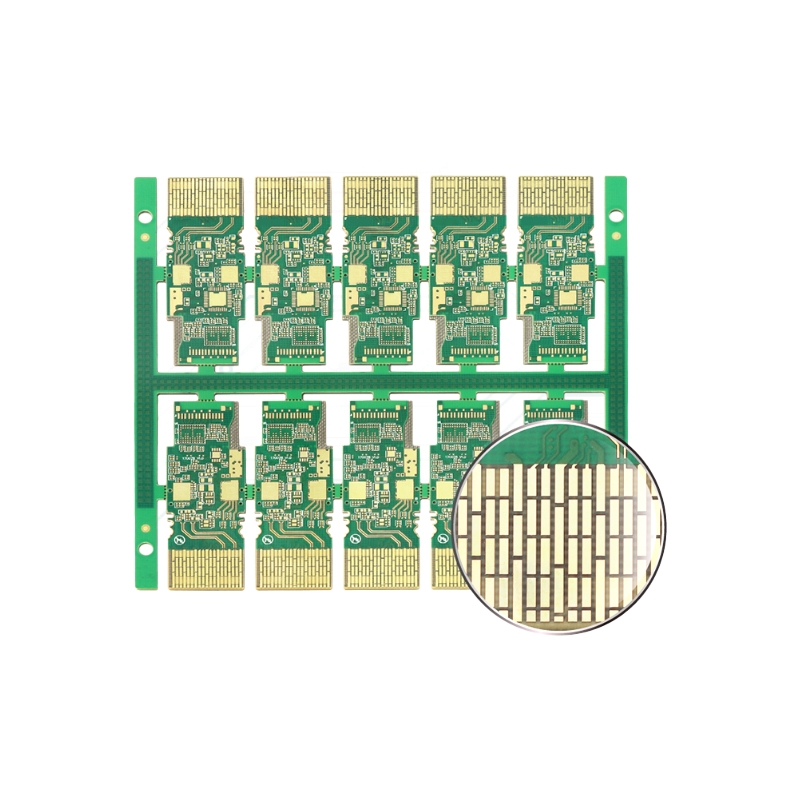

High Multilayer Boards
High Multilayer Boards
Product Model：10L
Product Description：
▪ Layers: 10L
▪ Model: 400Gbps QSFP-DD
▪ Material: M6 (R-5775)
▪ Finished Thickness Tolerance: 1.0±0.075mm at gold finger area
▪ Plug Outline Tolerance: ±0.05mm
▪ Hole Fill Dent: ＜15μm
▪ Surface Finish: ENEPIG + Hard Electroplated Gold

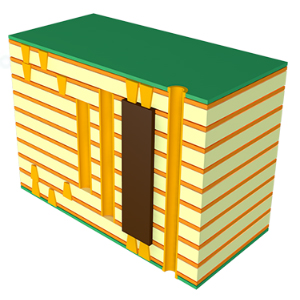

▪ Thermal Design: Embedded Copper Block
