Heavy Copper Boards

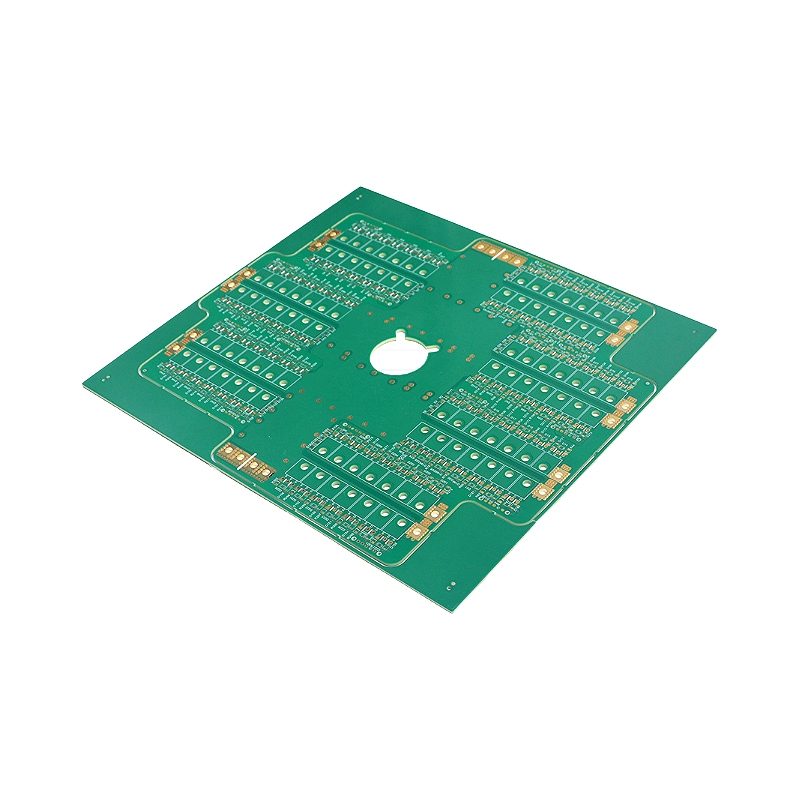

Heavy Copper Boards
Product Model：10L
Product Description：

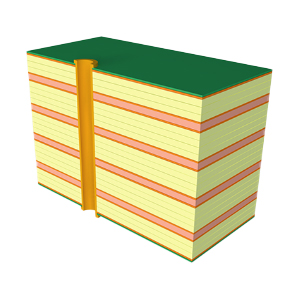

▪ Layers: 10L
▪ Material: TU865
▪ Board Thickness: 3.5mm
▪ Inner & Outer Copper Weight: 5oz
▪ Min Line Width / Spacing: 2/2mil
▪ Min Hole Size: 0.7mm
▪ Surface Finish: ENIG
▪ Application: Communication Equipment
