High-Order HDI Boards
High-Order HDI Boards

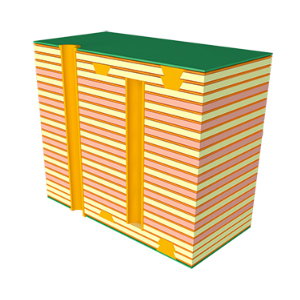

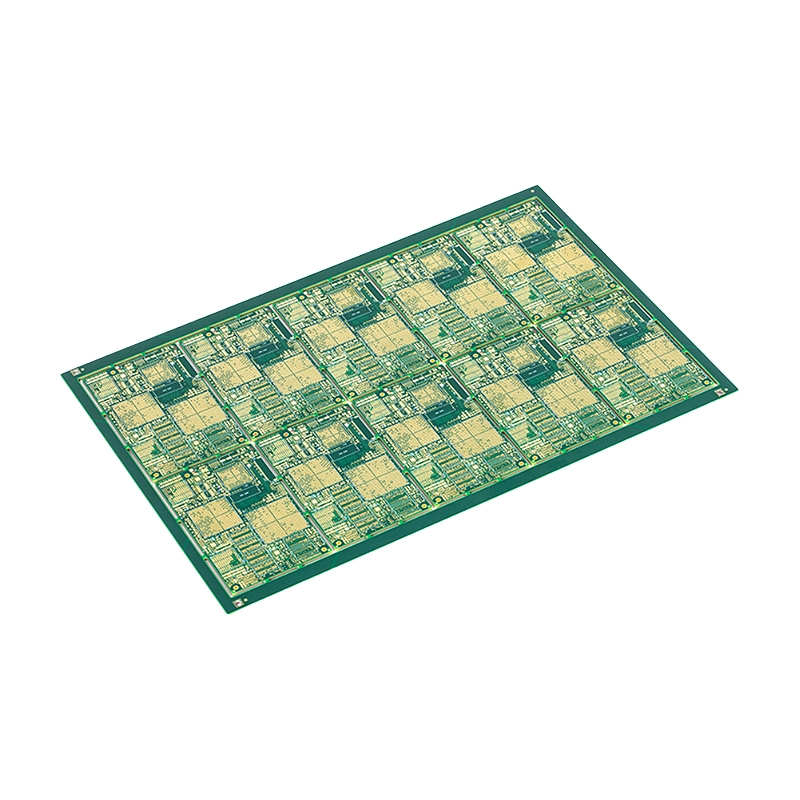

Product Model：24L
Product Description：
▪ Layers: 24L
▪ Material: FR-4 (Tg180) VT-47
▪ Board Thickness: 2.59±0.26 mm
▪ Minimum Line Width / Line Space: 3.5 / 5.0 mil
▪ Minimum Hole Size: 0.25 mm
▪ Surface Finish: Immersion Gold
