Heavy Copper Boards

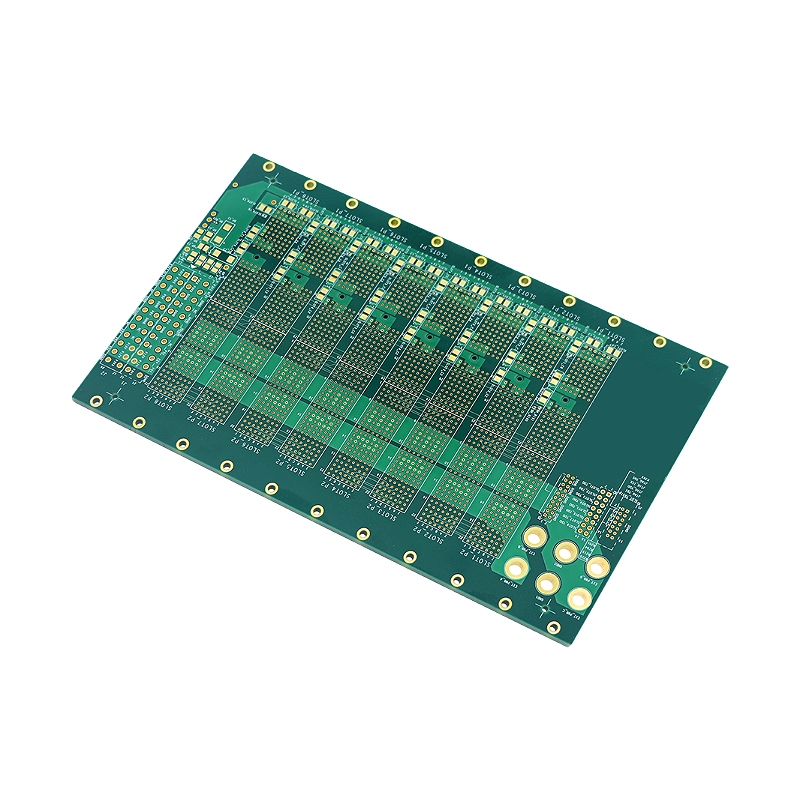

Heavy Copper Boards
Product Model：10L
Product Description：

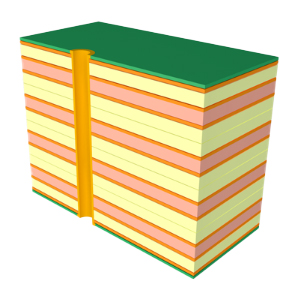

▪ Layers: 10L
▪ Material: EM-827
▪ Board Thickness: 4.85mm
▪ Inner & Outer Copper Weight: 3oz
▪ Min Line Width / Spacing: 0.45/0.30mm
▪ Min Hole Size: 0.25mm
▪ Surface Finish: ENIG
Prev：Heavy Copper Boards
