5G Active Antenna Boards

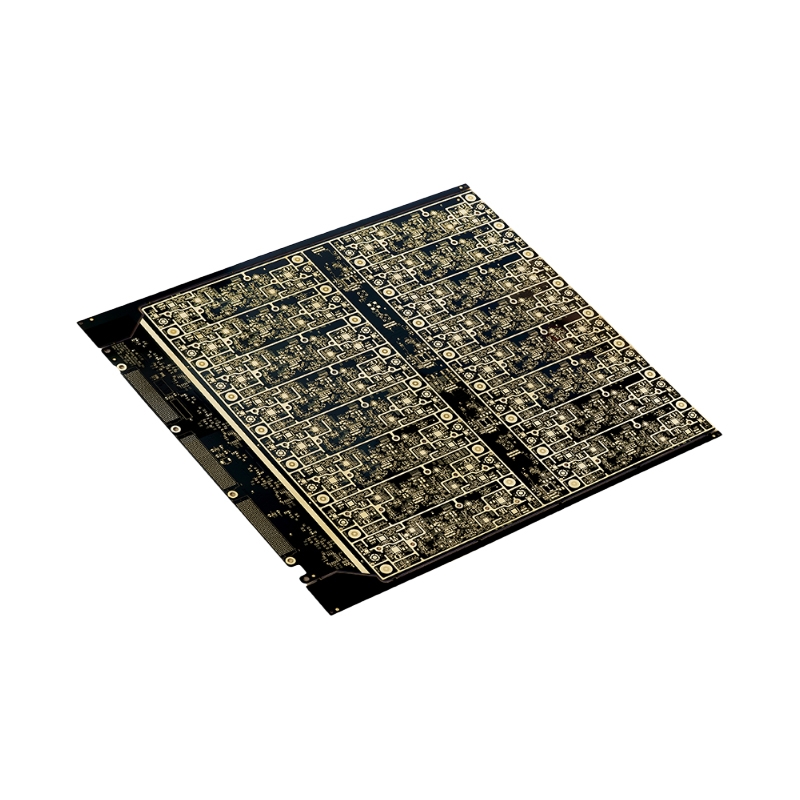

5G Active Antenna Boards
Product Model：22L
Product Description：

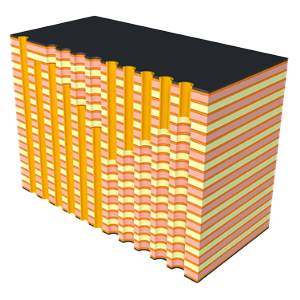

▪ Layers: 22L
▪ Material: Doosan DS-7409DV HVLP
▪ Lamination: 2 times lamination
▪ Process: 11 sets of backdrilling tapes, VIPPO
▪ Embedded with 22 copper blocks
▪ 10 types of impedance (single-ended / differential)
▪ High & low voltage electroplated hole filling process
