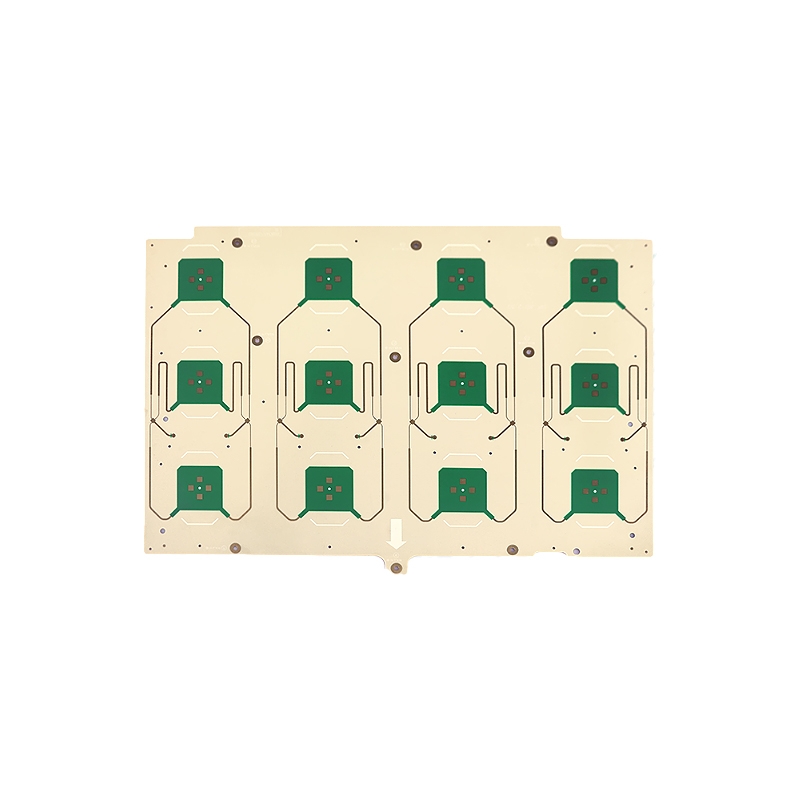

HF Antenna Boards
HF Antenna Boards
Product Model：2L
Product Description：

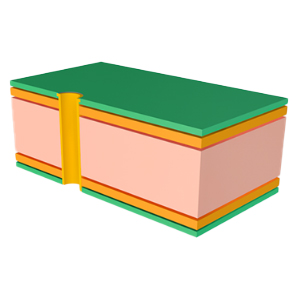

▪ Layers: 2L
▪ Material: Doosan DS-7409DV
▪ Board Thickness: 0.6mm ±10%
▪ Min Line Width / Spacing: 0.580mm ±5%
▪ Min Hole Size: 0.2mm
▪ Surface Finish: Immersion Tin
