Product Model：8L

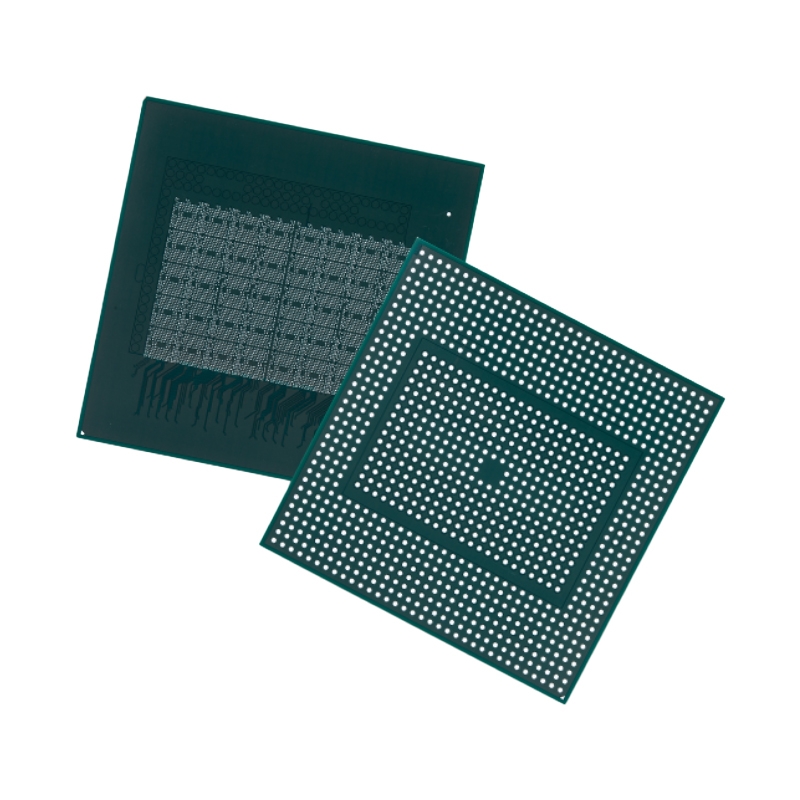

Product Description：

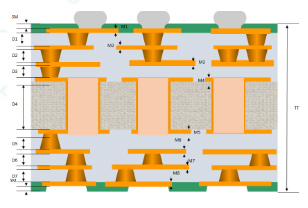

◆ Layers: 8L (3+2+3 stack-up)
◆ Material: MCL-E-705G + ABF GL102
◆ Board Thickness: 0.76 mm
◆ Size: 50×50 mm
◆ Inner & Outer Copper Thickness: 17 μm
◆ Min Line Width/Spacing: 10/10 μm
◆ Min Hole Size: 50 μm
◆ Surface Finish: Immersion Tin + OSP
Prev：HPC
Next：RF Modules
Related Products
-
6L, 2+2+2Application Baseband Chips
6L, 2+2+2Application Baseband Chips
◆ Structure : 6L, 2+2+2,Total thickness 400 μm, core thickness 150μm;Inner layer: 75μm laser dirlled“X” hole ,copper filled. Outer layer:60μmlaser blind via.◆ Fine line: inner layerMSAP process,L/S=15/15 μm.◆ AUS SR1/thickness 15+/-7μm，SRO=105μm，SM shift tolerance≤15...
More > -
2LFingerprint Modules
2LFingerprint Modules
◆ Structure: 2L，Substrate thickness tolerance±15μm;Mechanical Drilling，Filled Via with SM or resin;◆ Tenting process，L/S≥35/35μm;◆ AUS320/25±7μm，SM Flatness≤7um;◆ Surface finish: Soft Ni/Au +Etch-back
More > -
8LFlip Chip BGA
8LFlip Chip BGA
◆ Layers: 8L (3+2+3 stack-up)◆ Material: MCL-E-705G + ABF GL102◆ Board Thickness: 0.76 mm◆ Size: 50×50 mm◆ Inner & Outer Copper Thickness: 17 μm◆ Min Line Width/Spacing: 10/10 μm◆ Min Hole Size: 50 μm◆ Surface Finish: Immersion Tin + OSP
More > -
3LMemory Chips
3LMemory Chips
◆ Structure:3L Coreless, Total thickness:130μm;◆ MSAP process，BF Pitch/Width min /Space min :65/35/15μm;◆ Warpage≤2mm(before reflow);◆ Surface finish: AFOP(TOP:Ni/Au,BTM: OSP)
More > -
2LApplication Baseband Chips
2LApplication Baseband Chips
◆ Structure : 2L,Total thickness170 μm, core thickness 100μm;◆ MSAP process，L/S=20/20μm◆ 75μm laser dirlled “X” hole ，copper filled.Bonding finger Pitch: 95μm(50/40μm)BOL Pitch: 55μm(25/30μm)◆ Surface finish:Soft Ni/Au+OSP +Etch-back
More > -
2LMemory Chips
2LMemory Chips
◆ Structure: 2L，Total thickness:100 μm min;Mechanical Drilling，Filled Via with SM;Laser Drilling，Filled Via with Copper, dimple≤5μm;◆ Tenting process，L/S≥35/35um;MSAP process,L/S≤25/25μm;◆ SM colour: Green or Black matte /thickness 20+/-7μm,SM Flatness≤7μm;◆ Surface fini...
More > -
12LHPC
12LHPC
◆ Structure:12L,5+2+5◆ Core: BT / thickness 0.8mm◆ Bulid up : GX92/ thickness 25μm
More > -
4L，1+2+1RF Modules
4L，1+2+1RF Modules
◆ Structure: 4L，1+2+1，Total thickness:180μm min;◆ Layer alignment: blind via ring width 25μm，Adjacentlayer shift≤25μm，Random layer shift≤40μm◆ MSAP process，trace width tolerance ±5μm ;◆ Surface finish: Thin ENEPIG ( Ni thickness 0.3~0.5μm)
