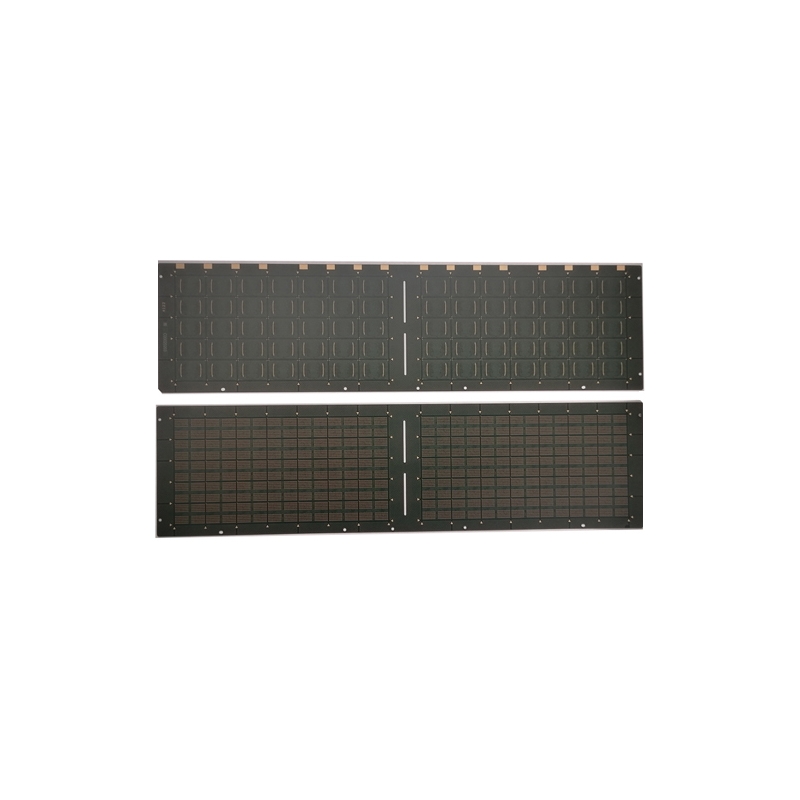

Product Model：3L
Product Description：

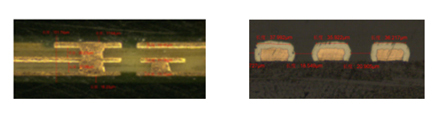

◆ Structure:3L Coreless, Total thickness:130μm;
◆ MSAP process，BF Pitch/Width min /Space min :65/35/15μm;
◆ Warpage≤2mm(before reflow);
◆ Surface finish: AFOP(TOP:Ni/Au,BTM: OSP)
